Single direction angular contact thrust ball bearings

Collect

Details

Single direction angular contact thrust ball bearings have been developed specially for the support of ball and roller screws in machine tools, and they also can be used successfully for other applications. These non-separable design bearings, which have a ball-centred cage of the polyamide 6,6 incorporating a large number of balls, stands particularly close conformity between the balls and raceways with 60º contact angle. These design characteristics contribute to：

(1) High axial stiffness of the bearing

(2) Suitable for the accommodation of radial load in addition to axial load

(3) High running accuracy especial for axial running

(4) High speed and acceleration performance

(5) Low friction torque

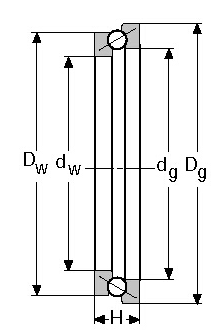

Bearing	Dimension(Metric)					Weight
Bearing	Dw	Dg	Dw	Dg	H	Wgt. lbs
751112 MS P/5	60	67	78	85	17	0.628
751113 MS P/5	65	71	84	90	18	0.72
751114 MS P/5	70	76	89	95	18	0.77
751115 MS P/5	75	81	94	100	19	0.86
751116 MS P/5	80	86	99	105	19	0.91
751117 MS P/5	85	91	104	110	19	0.96
751118 MS P/5	90	98	112	120	22	1.43
751120 MS P/5	100	110	126	135	25	1.99
751122 MS P/5	110	120	136	145	25	2.16
751124 MS P/5	120	130	146	155	25	2.34
751126 MS P/5	130	141	160	170	30	3.51
751128 MS P/5	140	151	170	180	31	3.86
751130 MS P/5	150	161	180	190	31	4.1
751132 MS P/5	160	171	190	200	31	4.32
751134 MS P/5	170	182	203	215	34	5.64
751136 MS P/5	180	192	213	225	34	5.93
751138 MS P/5	190	203	227	240	37	7.57
751140 MS P/5	200	213	237	250	37	7.96
751144 MS P/5	220	233	257	270	37	8.67
751148 MS P/5	240	256	284	300	45	14.03
751152 MS P/5	260	276	304	320	45	15.04
751156 MS P/5	280	298	332	350	53	22.49
751160 MS P/5	300	322	359	380	62	32.85
751164 MS P/5	320	341	379	400	63	35.28
751168 MS P/5	340	361	400	420	64	37.7
751172 MS P/5	360	381	420	440	65	40.57
751176 MS P/5	380	401	440	460	65	42.55
751180 MS P/5	400	421	460	480	65	44.76
751184 MS P/5	420	441	480	500	65	46.74
751188 MS P/5	440	467	514	540	80	76.94
751192 MS P/5	460	487	534	560	80	80.24
751196 MS P/5	480	507	554	580	80	83.34
7511/500 MS P/5	500	527	574	600	80	86.64
