72 series angular contact ball bearing

Collect

Details

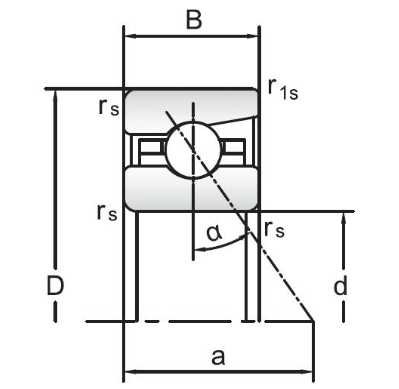

Bearing NO.	Dimension					mounting dimensions		Loading kN		Limitied speed r/min		Prelaoding N			Axial rigidity Ra N/μm			Weight Kg ≈
Bearing NO.	d	D	B	ra min	r1 min	ra max	rb max	Cr	Cor	Lub.	Oil.	A (L)	B (M)	C (H)	A (L)	B (M)	C (H)	Weight Kg ≈
7204C	20	47	14	1	0.3	1	0.3	13.1	9.6	34000	50000	70	210	420	27	39	49	0.11
7204AC	20	47	14	1	0.3	1	0.3	12.6	9.2	30000	45000	115	340	680	72	100	126	0.11
7205C	25	52	15	1	0.3	1	0.3	16.8	13.1	30000	45000	90	270	540	32	46	58	0.14
7205AC	25	52	15	1	0.3	1	0.3	16.1	12.5	26000	40000	150	450	900	85	119	150	0.14
7206C	30	62	16	1	0.3	1	0.3	23.4	18.8	24000	38000	120	360	720	38	55	69	0.21
7206AC	30	62	16	1	0.3	1	0.3	22.3	18	20000	34000	200	600	1200	101	141	178	0.21
7207C	35	72	17	1.1	0.6	1.1	0.6	25.8	22.9	18000	30000	135	400	800	44	63	79	0.31
7207AC	35	72	17	1.1	0.6	1.1	0.6	24.5	21.9	17000	28000	220	660	1320	116	162	204	0.31
7208C	40	80	18	1.1	0.6	1.1	0.6	34.1	30.9	17000	28000	180	540	1080	50	72	92	0.4
7208AC	40	80	18	1.1	0.6	1.1	0.6	32.5	29.5	15000	24000	295	880	1760	134	187	235	0.4
7209C	45	85	19	1.1	0.6	1.1	0.6	35.5	33.8	16000	26000	187	560	1120	53	77	97	0.45
7209AC	45	85	19	1.1	0.6	1.1	0.6	33.8	32.3	14000	22000	300	900	1800	142	199	250	0.45
7210C	50	90	20	1.1	0.6	1.1	0.6	43.3	40.6	15000	24000	225	670	1340	57	82	104	0.49
7210AC	50	90	20	1.1	0.6	1.1	0.6	41.3	38.7	14000	22000	365	1090	2180	151	212	267	0.49
7211C	55	100	21	1.5	0.6	1.5	0.6	53.6	51.1	14000	22000	290	870	1740	63	91	116	0.65
7211AC	55	100	21	1.5	0.6	1.5	0.6	51.1	48.8	13000	20000	460	1380	2760	169	236	297	0.65
7212C	60	110	22	1.5	0.6	1.5	0.6	55.8	56.2	12000	19000	305	910	1820	67	97	123	0.86
7212AC	60	110	22	1.5	0.6	1.5	0.6	53	53.5	11000	18000	480	1440	2880	179	251	316	0.86
7213C	65	120	23	1.5	0.6	1.5	0.6	67.5	69	11000	18000	355	1060	2120	74	107	136	1.08
7213AC	65	120	23	1.5	0.6	1.5	0.6	64.2	65.8	9500	16000	570	1710	3420	198	277	348	1.08
7214C	70	125	24	1.5	0.6	1.5	0.6	70.2	74.6	10000	17000	370	1110	2220	78	113	143	1.19
7214AC	70	125	24	1.5	0.6	1.5	0.6	66.6	71.1	9000	15000	590	1770	3540	209	293	368	1.19
7215C	75	130	25	1.5	0.6	1.5	0.6	72.7	80.2	9500	16000	385	1150	2300	82	119	151	1.29
7215AC	75	130	25	1.5	0.6	1.5	0.6	68.9	76.3	8500	14000	615	1840	3680	220	309	388	1.29
7216C	80	140	26	2	1	2	1	86.5	96.5	9000	15000	460	1380	2760	90	130	165	1.58
7216AC	80	140	26	2	1	2	1	82.1	91.9	8000	13000	750	2250	4500	240	338	424	1.58
7217C	85	150	28	2	1	2	1	97.4	107.5	8500	14000	515	1540	3080	93	134	169	1.96
7217AC	85	150	28	2	1	2	1	92.5	102.4	7500	12000	825	2470	4940	247	347	436	1.96
7218C	90	160	30	2	1	2	1	121.9	131.3	8000	13000	655	1960	3920	110	160	202	2.44
7218AC	90	160	30	2	1	2	1	115.8	124.6	7000	11000	1050	3150	6300	276	394	496	4.44
7219C	95	170	32	2.1	1.1	2.1	1.1	128.9	145.1	7500	11000	1050	3150	6300	276	394	496	2.93
7219AC	95	170	32	2.1	1.1	2.1	1.1	122.5	138.3	6700	10000	1050	3150	6300	286	410	517	2.93
7220C	100	180	34	2.1	1.1	2.1	1.1	146.2	165.9	7000	11000	770	2310	4620	114	165	208	3.51
7220AC	100	180	34	2.1	1.1	2.1	1.1	138.9	158.2	6700	10000	1240	3720	7440	305	427	537	3.51
7221C	105	190	36	2.1	1.1	2.1	1.1	164.3	188.2	7000	11000	890	2670	5340	121	175	221	4.17
7221AC	105	190	36	2.1	1.1	2.1	1.1	156.3	179.5	6300	9500	1430	4290	8580	323	454	570	4.17
7222C	110	200	38	2.1	1.1	2.1	1.1	170.4	202.5	6700	10000	920	2760	5520	127	184	233	4.95
7222AC	110	200	38	2.1	1.1	2.1	1.1	161.8	193	6000	9000	1480	4440	8880	341	478	601	4.95
7224C	120	215	40	2.1	1.1	2.1	1.1	175.4	218.4	6000	9000	950	2850	5700	133	193	245	6.01
7224AC	120	215	40	2.1	1.1	2.1	1.1	166.3	207.9	5300	8000	1500	4500	9000	358	502	631	6.01
7226C	130	230	40	3	1.1	3	1.1	200.6	258.3	5600	8500	1050	3100	6200	139	202	255	6.41
7226AC	130	230	40	3	1.1	3	1.1	190.4	246.2	5000	7500	1600	4800	9600	373	525	659	6.41
7228C	140	250	42	3	1.1	3	1.1	223.6	306.6	5000	7500	1200	3600	7200	152	221	279	8.17
7228AC	140	250	42	3	1.1	3	1.1	212.3	292.2	4500	6700	1900	5700	11400	410	575	723	8.17
7230C	150	270	45	3	1.1	3	1.1	240.9	341.5	4500	6700	1280	3800	7600	158	229	290	10.38
7230AC	150	270	45	3	1.1	3	1.1	228.7	325.5	4000	6000	2050	6100	12200	426	599	753	10.38
7232C	160	290	48	3	1.1	3	1.1	248.6	365.8	4300	6300	1330	4000	8000	165	240	303	13.1
7232AC	160	290	48	3	1.1	3	1.1	236.1	348.6	3800	5600	2100	6300	12600	446	627	788	13.1
7234C	170	310	52	4	1.5	4	1.5	300.2	459.2	3800	5600	1600	4800	9600	173	251	318	15.93
7234AC	170	310	52	4	1.5	4	1.5	285	437.6	3600	5300	2500	7500	15000	468	658	827	15.93
7236C	180	320	52	4	1.5	4	1.5	311.2	490.8	3800	5600	1660	4900	9800	181	264	334	16.61
7236AC	180	320	52	4	1.5	4	1.5	295.5	467.7	3400	5000	2650	7900	15800	492	691	869	16.61
7238C	190	340	55	4	1.5	4	1.5	321.3	524.8	3400	5000	1700	5100	10200	190	276	349	20.29
7238AC	190	340	55	4	1.5	4	1.5	305.1	500.1	3200	4800	2700	8100	16200	515	724	910	20.29
7240C	200	360	58	4	1.5	4	1.5	330.9	558.6	3200	4800	1760	5300	10600	198	288	365	24.49
7240AC	200	360	58	4	1.5	4	1.5	314.2	532.3	3000	4500	2800	8400	16800	538	756	951	24.49
