BAR high-speed angular contact bearing

Collect

Details

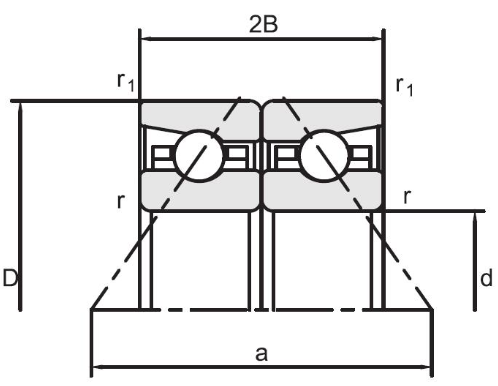

Bearing NO.	Dimension					Basic load rating (KN)		Permissible sxial load (KN)	Effective load center (mm) a	Limiting speed （rpm）min-1		Weight (kg)
Bearing NO.	D	d	2B	r Min	r1 Min	Cr	C0r	Permissible sxial load (KN)	Effective load center (mm) a	Grease	Oil	Weight (kg)
50BAR10S	50	80	28.5	1	0.6	14.7	27.7	18.4	25.7	11600	14700	0.272
50BAR10H	50	80	28.5	1	0.6	14.7	27.7	12.6	25.7	13100	16200	0.257
55BAR10S	55	90	33	1.1	0.6	18.2	35	23.4	28.9	10400	13200	0.412
55BAR10H	55	90	33	1.1	0.6	18.2	35	16	28.9	11800	14500	0.391
60BAR10S	60	95	33	1.1	0.6	18.9	38	25.5	30.4	9700	12300	0.42
60BAR10H	60	95	33	1.1	0.6	18.9	38	17.5	30.4	11000	13600	0.397
65BAR10S	65	100	33	1.1	0.6	19.5	41.5	27.7	31.8	9100	11600	0.447
65BAR10H	65	100	33	1.1	0.6	19.5	41.5	19	31.8	10400	12800	0.406
70BAR10S	70	110	36	1.1	0.6	26.9	55	37.5	34.7	8400	10600	0.601
70BAR10H	70	110	36	1.1	0.6	26.9	55	25.5	34.7	9500	11700	0.561
75BAR10S	75	115	36	1.1	0.6	27.3	58	39	36.1	7900	10000	0.634
75BAR10H	75	115	36	1.1	0.6	27.3	58	26.7	36.1	9000	11100	0.592
80BAR10S	80	125	40.5	1.1	0.6	32	68.5	46.5	39.4	7400	9300	0.875
80BAR10H	80	125	40.5	1.1	0.6	32	68.5	32	39.4	8300	10300	0.821
85BAR10S	85	130	40.5	1.1	0.6	32.5	71.5	48.5	41.1	7000	8900	0.971
85BAR10H	85	130	40.5	1.1	0.6	32.5	71.5	33	41.1	8000	9800	0.915
90BAR10S	90	140	45	1.5	1	42.5	92.5	62.5	44.4	6600	8300	1.198
90BAR10H	90	140	45	1.5	1	42.5	92.5	43	44.4	7400	9200	1.124
95BAR10S	95	145	45	1.5	1	43	96.5	65	45.5	6300	8000	1.32
95BAR10H	95	145	45	1.5	1	43	96.5	44.5	45.5	7100	8800	1.231
100BAR10S	100	150	45	1.5	1	43.5	100	68	47.3	6000	7600	1.399
100BAR10H	100	150	45	1.5	1	43.5	100	46.5	47.3	6800	8400	1.307
105BAR10S	105	160	49.5	2	1	49.5	115	78	50.6	5700	7200	1.74
105BAR10H	105	160	49.5	2	1	49.5	115	53.5	50.6	6500	8000	1.624
110BAR10S	110	170	54	2	1	55.5	131	89	53.9	5400	6800	2.11
110BAR10H	110	170	54	2	1	55.5	131	60.5	53.9	6100	7500	1.972
120BAR10S	120	180	54	2	1	57	141	96	56.8	5000	6400	2.262
120BAR10H	120	180	54	2	1	57	141	65.5	56.8	5700	7000	2.114
130BAR10S	130	200	63	2	1	72.5	172	117	63.4	4600	5800	3.362
130BAR10H	130	200	63	2	1	72.5	172	79.5	63.4	5200	6400	3.148
140BAR10S	140	210	63	2	1	78.5	200	135	66.2	4300	5500	3.558
150BAR10S	150	225	67.5	2.1	1.1	92.5	234	160	71	4000	5100	4.354
160BAR10S	160	240	72	2.1	1.1	98.5	250	104	75.7	3800	4800	5.64
170BAR10S	170	260	81	2.1	1.1	115	295	207	82.3	3500	4500	7.9
180BAR10S	180	280	90	2.1	1.1	151	385	262	88.8	3300	4200	10.2
190BAR10S	190	290	90	2.1	1.1	151	390	273	91.8	3200	4000	10.7
200BAR10S	200	310	99	2.1	1.1	169	444	300	98.3	3000	3800	13.8
