BTR high-speed angular contact bearing

Collect

Details

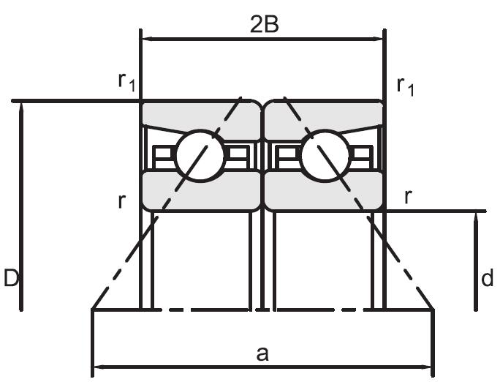

Bearing NO.	Dimension					Basic load rating (KN)		Permissible sxial load (KN)	Effective load center (mm) a	Limiting speed （rpm）min-1		Weight (kg)
Bearing NO.	D	d	2B	r Min	r1 Min	Cr	C0r	Permissible sxial load (KN)	Effective load center (mm) a	Grease	Oil	Weight (kg)
50BTR10S	50	80	28.5	1	0.6	17.4	31.5	21.5	34.1	10000	13100	0.272
50BTR10H	50	80	28.5	1	0.6	17.4	31.5	15.5	34.1	11600	14700	0.257
55BTR10S	55	90	33	1.1	0.6	21.6	40	26.4	38.3	9000	11800	0.412
55BTR10H	55	90	33	1.1	0.6	21.6	40	19.7	38.3	10400	13200	0.391
60BTR10S	60	95	33	1.1	0.6	22.4	43.5	25.8	40.4	8400	11000	0.42
60BTR10H	60	95	33	1.1	0.6	22.4	43.5	21.5	40.4	9700	12300	0.397
65BTR10S	65	100	33	1.1	0.6	23.1	47	27.3	42.5	7900	10400	0.447
65BTR10H	65	100	33	1.1	0.6	23.1	47	23.3	42.5	9100	11600	0.406
70BTR10S	70	110	36	1.1	0.6	32	63	35	46.3	7300	9500	0.601
70BTR10H	70	110	36	1.1	0.6	32	63	31.5	46.3	8400	10600	0.561
75BTR10S	75	115	36	1.1	0.6	32.5	65.5	36.5	48.4	6900	9000	0.634
75BTR10H	75	115	36	1.1	0.6	32.5	65.5	33	48.4	7900	10000	0.592
80BTR10S	80	125	40.5	1.1	0.6	38	78	43	52.7	6400	8300	0.875
80BTR10H	80	125	40.5	1.1	0.6	38	78	39	52.7	7400	9300	0.821
85BTR10S	85	130	40.5	1.1	0.6	38.5	81.5	50.5	55.2	6100	8000	0.971
85BTR10H	85	130	40.5	1.1	0.6	38.5	81.5	41	55.2	7000	8900	0.915
90BTR10S	90	140	45	1.5	1	50	105	58	59.5	5700	7400	1.198
90BTR10H	90	140	45	1.5	1	50	105	52.5	59.5	6600	8300	1.124
95BTR10S	95	145	45	1.5	1	51	110	69	61	5500	7100	1.32
95BTR10H	95	145	45	1.5	1	51	110	55	61	6300	8000	1.231
100BTR10S	100	150	45	1.5	1	51.5	114	66.5	63.7	5200	6800	1.399
100BTR10H	100	150	45	1.5	1	51.5	114	57	63.7	6000	7600	1.307
105BTR10S	105	160	49.5	2	1	58.5	131	84	68	5000	6500	1.74
105BTR10H	105	160	49.5	2	1	58.5	131	65.5	68	5700	7200	1.624
110BTR10S	110	170	54	2	1	66	148	82.5	72.2	4700	6100	2.11
110BTR10H	110	170	54	2	1	66	148	74.5	72.2	5400	6800	1.972
120BTR10S	120	180	54	2	1	68	160	88.5	76.4	4400	5700	2.262
120BTR10H	120	180	54	2	1	68	160	80.5	76.4	5000	6400	2.114
130BTR10S	130	200	63	2	1	86	195	106	85	4000	5200	3.362
130BTR10H	130	200	63	2	1	86	195	98	85	4600	5800	3.148
140BTR10S	140	210	63	2	1	93	227	84	89.1	3800	4900	3.558
150BTR10S	150	225	67.5	2.1	1.1	110	267	165	95.5	3500	4600	4.354
160BTR10S	160	240	72	2.1	1.1	117	284	184	101.9	3300	4300	5.64
170BTR10S	170	260	81	2.1	1.1	136	335	220	110.5	3100	4000	7.9
180BTR10S	180	280	90	2.1	1.1	179	440	255	118.9	2900	3700	10.2
190BTR10S	190	290	90	2.1	1.1	179	445	281	123.2	2800	3600	10.7
200BTR10S	200	310	99	2.1	1.1	201	505	310	131.7	2600	3400	13
