BGR high-speed angular contact bearing

Collect

Details

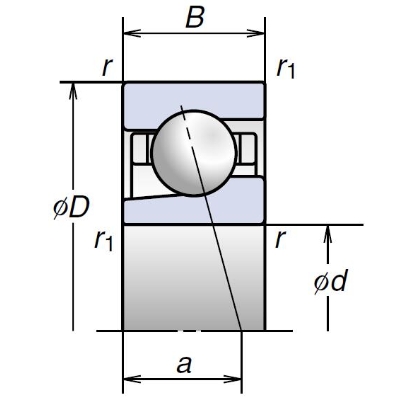

Bearing NO.	Dimension					Loading rating (KN)		Permissibleaxial load (KN)	Effective load center (mm)	Limiting speeds （rpm）min-1		Weight (kg)
Bearing NO.	D (mm)	d (mm)	2B (mm)	r Min	r1 Min	Cr	C0r	Permissibleaxial load (KN)	Effective load center (mm)	Grease	Oil	Weight (kg)
10BGR19S	10	22	6	0.3	0.15	2.03	0.78	0.93	5.1	100000	138000	0.01
10BGR19H	10	22	6	0.3	0.15	2.03	0.78	0.61	5.1	119000	175000	0.009
10BGR19X	10	22	6	0.3	0.15	2.03	0.78	0.61	5.1	138000	188000	0.009
12BGR19S	12	24	6	0.3	0.15	2.28	0.95	1.14	5.4	88900	123000	0.011
12BGR19H	12	24	6	0.3	0.15	2.28	0.95	0.74	5.4	106000	156000	0.01
12BGR19X	12	24	6	0.3	0.15	2.28	0.95	0.74	5.4	123000	167000	0.01
15BGR19S	15	28	7	0.3	0.15	3.25	1.35	1.67	6.4	74500	103000	0.016
15BGR19H	15	28	7	0.3	0.15	3.25	1.35	1.09	6.4	88400	131000	0.014
15BGR19X	15	28	7	0.3	0.15	3.25	1.35	1.09	6.4	103000	140000	0.014
17BGR19S	17	30	7	0.3	0.15	3.4	1.5	1.86	6.6	68100	93700	0.017
17BGR19H	17	30	7	0.3	0.15	3.4	1.5	1.21	6.6	80900	120000	0.015
17BGR19X	17	30	7	0.3	0.15	3.4	1.5	1.21	6.6	93700	128000	0.015
20BGR19S	20	37	9	0.3	0.15	4.75	2.16	2.66	8.3	56200	77200	0.036
20BGR19H	20	37	9	0.3	0.15	4.75	2.16	1.73	8.3	66700	98300	0.033
20BGR19X	20	37	9	0.3	0.15	4.75	2.16	1.73	8.3	77200	106000	0.033
25BGR19S	25	42	9	0.3	0.15	5.4	2.76	3.4	9	47 800	65700	0.043
25BGR19H	25	42	9	0.3	0.15	5.4	2.76	2.22	9	56800	83600	0.039
25BGR19X	25	42	9	0.3	0.15	5.4	2.76	2.22	9	65700	89600	0.039
6BGR10S	6	17	6	0.3	0.15	1.42	0.43	0.51	4.5	140000	192000	0.006
6BGR10H	6	17	6	0.3	0.15	1.42	0.43	0.34	4.5	166000	244000	0
6BGR10X	6	17	6	0.3	0.15	1.42	0.43	0.34	4.5	192000	261000	0.005
7BGR10S	7	19	6	0.3	0.15	1.6	0.52	0.62	4.7	124000	170000	0.008
7BGR10H	7	19	6	0.3	0.15	1.6	0.52	0.4	4.7	147000	216000	0.007
7BGR10X	7	19	6	0.3	0.15	1.6	0.52	0.4	4.7	170000	231000	0.007
8BGR10S	8	22	7	0.3	0.15	2.37	0.8	0.97	5.5	107000	147000	0.012
8BGR10H	8	22	7	0.3	0.15	2.37	0.8	0.63	5.5	127000	187000	0.011
8BGR10X	8	22	7	0.3	0.15	2.37	0.8	0.63	5.5	147000	200000	0.011
10BGR10S	10	26	8	0.3	0.15	3.5	1.27	1.55	6.4	88900	123000	0.019
10BGR10H	10	26	8	0.3	0.15	3.5	1.27	1	6.4	106000	156000	0.016
10BGR10X	10	26	8	0.3	0.15	3.5	1.27	1	6.4	123000	167000	0.016
12BGR10S	12	28	8	0.3	0.15	3.85	1.48	1.8	6.7	80000	110000	0.021
12BGR10H	12	28	8	0.3	0.15	3.85	1.48	1.17	6.7	95000	140000	0.018
12BGR10X	12	28	8	0.3	0.15	3.85	1.48	1.17	6.7	110000	150000	0.018
15BGR10S	15	32	9	0.3	0.15	4.2	1.72	2.12	7.6	68100	93700	0.029
15BGR10H	15	32	9	0.3	0.15	4.2	1.72	1.37	7.6	80900	120000	0.026
15BGR10X	15	32	9	0.3	0.15	4.2	1.72	1.37	7.6	93700	128000	0.026
17BGR10S	17	35	10	0.3	0.15	4.45	1.93	2.39	8.5	61600	84700	0.038
17BGR10H	17	35	10	0.3	0.15	4.45	1.93	1.55	8.5	73100	108000	0.035
17BGR10X	17	35	10	0.3	0.15	4.45	1.93	1.55	8.5	84700	116000	0.035
20BGR10S	20	42	12	0.6	0.3	7.45	3.35	4.1	10.2	51700	71000	0.066
20BGR10H	20	42	12	0.6	0.3	7.45	3.35	2.67	10.2	61300	90400	0.059
20BGR10X	20	42	12	0.6	0.3	7.45	3.35	2.67	10.2	71000	96800	0.059
25BGR10S	25	47	12	0.6	0.3	7.9	3.75	4.65	10.8	44500	61200	0.076
25BGR10H	25	47	12	0.6	0.3	7.9	3.75	3.05	10.8	52800	77800	0.068
25BGR10X	25	47	12	0.6	0.3	7.9	3.75	3.05	10.8	61200	83400	0.068
10BGR02S	10	30	9	0.6	0.3	3.6	1.33	1.62	7.2	80000	110000	0.032
10BGR02H	10	30	9	0.6	0.3	3.6	1.33	1.06	7.2	95000	140000	0.029
10BGR02X	10	30	9	0.6	0.3	3.6	1.33	1.06	7.2	110000	150000	0.029
12BGR02S	12	32	10	0.6	0.3	5.3	1.99	2.46	7.9	72800	100000	0.036
12BGR02H	12	32	10	0.6	0.3	5.3	1.99	1.6	7.9	86400	128000	0.032
12BGR02X	12	32	10	0.6	0.3	5.3	1.99	1.6	7.9	100000	137000	0.032
15BGR02S	15	35	11	0.6	0.3	5.8	2.34	2.9	8.8	64000	88000	0.045
15BGR02H	15	35	11	0.6	0.3	5.8	2.34	1.89	8.8	76000	112000	0.04
15BGR02X	15	35	11	0.6	0.3	5.8	2.34	1.89	8.8	88000	120000	0.04
17BGR02S	17	40	12	0.6	0.3	7.25	2.98	3.65	9.8	56200	77200	0.065
17BGR02H	17	40	12	0.6	0.3	7.25	2.98	2.39	9.8	66700	98300	0.057
17BGR02X	17	40	12	0.6	0.3	7.25	2.98	2.39	9.8	77200	106000	0.057
20BGR02S	20	47	14	1	0.6	9.7	4.1	5.1	11.5	47800	65700	0.103
20BGR02H	20	47	14	1	0.6	9.7	4.1	3.3	11.5	56800	83600	0.091
20BGR02X	20	47	14	1	0.6	9.7	4.1	3.3	11.5	65700	89600	0.091
25BGR02S	25	52	15	1	0.6	11.1	5.2	6.45	12.7	41600	57200	0.127
25BGR02H	25	52	15	1	0.6	11.1	5.2	4.2	12.7	49400	72800	0.112
25BGR02X	25	52	15	1	0.6	11.1	5.2	4.2	12.7	57200	78000	0.112
