ZKLN axial angular contact ball bearing

Collect

Details

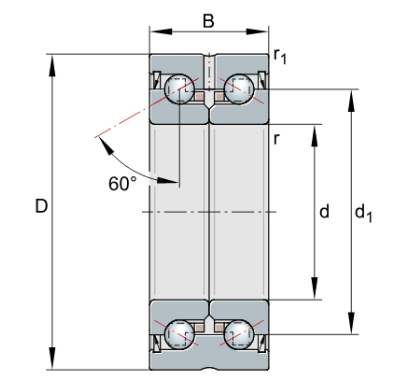

Designation	Mass m = kg	Dimensions						Mounting dimensions		Basic load ratings axial
Designation	Mass m = kg	d	D – 0,010	B – 0,25	d1	r min.	r1 min.	Da max.	da min.	dyn. Ca N	stat. C0a N
ZKLN0619-2Z	0.02	6	19	12	12	0.3	0.3	16	9	5400	6100
ZKLN0624-2RS	0.03	6	24	15	14	0.3	0.6	19	9	7600	8500
ZKLN0624-2Z	0.03	6	24	15	14	0.3	0.6	19	9	7600	8500
ZKLN0832-2RS	0.09	8	32	20	19	0.3	0.6	26	11	13800	16300
ZKLN0832-2Z	0.09	8	32	20	19	0.3	0.6	26	11	13800	16300
ZKLN1034-2RS	0.1	10	34	20	21	0.3	0.6	28	14	14700	18800
ZKLN1034-2Z	0.1	10	34	20	21	0.3	0.6	28	14	14700	18800
ZKLN1242-2RS	0.2	12	42	25	25	0.3	0.6	33	16	18600	24700
ZKLN1242-2Z	0.2	12	42	25	25	0.3	0.6	33	16	18600	24700
ZKLN1545-2RS	0.21	15	45	25	28	0.3	0.6	35	20	19600	28000
ZKLN1545-2Z	0.21	15	45	25	28	0.3	0.6	35	20	19600	28000
ZKLN1747-2RS	0.22	17	47	25	30	0.3	0.6	37	23	20700	31000
ZKLN1747-2Z	0.22	17	47	25	30	0.3	0.6	37	23	20700	31000
ZKLN2052-2RS	0.31	20	52	28	34.5	0.3	0.6	43	25	28500	47000
ZKLN2052-2Z	0.31	20	52	28	34.5	0.3	0.6	43	25	28500	47000
ZKLN2557-2RS	0.34	25	57	28	40.5	0.3	0.6	48	32	30500	55000
ZKLN2557-2Z	0.34	25	57	28	40.5	0.3	0.6	48	32	30500	55000
ZKLN3062-2RS	0.39	30	62	28	45.5	0.3	0.6	53	40	32000	64000
ZKLN3062-2Z	0.39	30	62	28	45.5	0.3	0.6	53	40	32000	64000
ZKLN3072-2RS	0.72	30	72	38	51	0.3	0.6	64	47	65000	108000
ZKLN3072-2Z	0.72	30	72	38	51	0.3	0.6	64	47	65000	108000
ZKLN3572-2RS	0.51	35	72	34	52	0.3	0.6	62	45	45000	89000
ZKLN3572-2Z	0.51	35	72	34	52	0.3	0.6	62	45	45000	89000
ZKLN4075-2RS	0.61	40	75	34	58	0.3	0.6	67	50	47500	101000
ZKLN4075-2Z	0.61	40	75	34	58	0.3	0.6	67	50	47500	101000
ZKLN4090-2RS	0.95	40	90	46	65	0.6	0.6	80	56	79000	149000
ZKLN4090-2Z	0.95	40	90	46	65	0.6	0.6	80	56	79000	149000
ZKLN5090-2RS	0.88	50	90	34	72	0.3	0.6	82	63	51000	126000
ZKLN5090-2Z	0.88	50	90	34	72	0.3	0.6	82	63	51000	126000
ZKLN50110-2RS	2.5	50	110	54	80	0.6	0.6	98	63	125000	250000
ZKLN50110-2Z	2.5	50	110	54	80	0.6	0.6	98	63	125000	250000
ZKLN60110-2Z	2.2	60	110	45	85	0.6	0.6	100	82	93000	214000
ZKLN70120-2Z	2.4	70	120	45	95	0.6	0.6	110	92	97000	241000
ZKLN80130-2Z	2.7	80	130	45	105	0.6	0.6	120	102	100000	265000
ZKLN90150-2Z	4.5	90	150	55	120	0.6	0.6	138	116	149000	395000
ZKLN100160-2Z	4.9	100	160	55	132	0.6	0.6	150	128	154000	435000
ZKLN0624-2RS-PE	0.03	6	24	15	14	0.3	0.6	19	9	6900	8500
ZKLN1034-2RS-PE	0.1	10	34	20	21	0.3	0.6	28	14	13400	18800
ZKLN1242-2RS-PE	0.2	12	42	25	25	0.3	0.6	33	16	16900	24700
ZKLN1545-2RS-PE	0.21	15	45	25	28	0.3	0.6	35	20	17900	28000
ZKLN1747-2RS-PE	0.22	17	47	25	30	0.3	0.6	37	23	18800	31000
ZKLN2052-2RS-PE	0.31	20	52	28	34.5	0.3	0.6	43	25	26000	47000
ZKLN2557-2RS-PE	0.34	25	57	28	40.5	0.3	0.6	48	32	27500	55000
ZKLN3062-2RS-PE	0.39	30	62	28	45.5	0.3	0.6	53	40	29000	64000
ZKLN3572-2RS-PE	0.51	35	72	34	52	0.3	0.6	62	45	41000	89000
ZKLN5090-2RS-PE	0.88	50	90	34	72	0.3	0.6	82	63	46500	126000
ZKLN1747-2RS-2AP	0.44	17	47	50	30	0.3	0.6	37	23	33500	62000
ZKLN2052-2RS-2AP	0.62	20	52	56	34.5	0.3	0.6	43	25	46000	94000
ZKLN2557-2RS-2AP	0.68	25	57	56	40.5	0.3	0.6	48	32	49000	111000
ZKLN3062-2RS-2AP	0.78	30	62	56	45.5	0.3	0.6	53	40	52000	127000
ZKLN3572-2RS-2AP	1.02	35	72	68	52	0.3	0.6	62	45	73000	177000
ZKLN4075-2RS-2AP	1.22	40	75	68	58	0.3	0.6	67	50	77000	202000
ZKLN5090-2RS-2AP	1.76	50	90	68	72	0.3	0.6	82	63	83000	250000
Fatigue limit load Cu N	Lim- iting speed nG grease min–1	Ther mally safe operating speed nP min–1	Bearing friction altorque MR Nm	Rigidit yaxial caL N/µm	Tilting rigidity ckL Nm /mrad	Mass moment of inertia Mm kgcm2	Axial runout µm	Reco mmended INA precision locknut			Required locknut force axial N
Fatigue limit load Cu N	Lim- iting speed nG grease min–1	Ther mally safe operating speed nP min–1	Bearing friction altorque MR Nm	Rigidit yaxial caL N/µm	Tilting rigidity ckL Nm /mrad	Mass moment of inertia Mm kgcm2	Axial runout µm	For radial locking	Tightenin gtorque MA Nm	Tightenin gtorque MA Nm	Required locknut force axial N
360	22800	14000	0.01	150	4	0.0019	2	ZM06	–	1	2010
500	16400	6800	0.04	200	8	0.0044	2	ZM06	–	2	2404
500	19900	12000	0.02	200	8	0.0044	2	ZM06	–	2	2404
960	12100	5100	0.08	250	20	0.02	2	ZM08	–	4	3468
960	15500	9500	0.04	250	20	0.02	2	ZM08	–	4	3468
1110	10900	4600	0.12	325	25	0.029	2	ZM10	–	6	4891
1110	14400	8600	0.06	325	25	0.029	2	ZM10	–	6	4891
1460	9200	3800	0.16	375	50	0.068	2	ZM12	–	8	5307
1460	12000	7600	0.08	375	50	0.068	2	ZM12	–	8	5307
1650	8200	3500	0.2	400	65	0.102	2	ZM15	AM15	10	5484
1650	10800	7000	0.1	400	65	0.102	2	ZM15	AM15	10	5484
1840	7600	3300	0.24	450	80	0.132	2	ZM17	AM17	15	7514
1840	10100	6600	0.12	450	80	0.132	2	ZM17	AM17	15	7514
2750	6600	3000	0.3	650	140	0.273	2	ZM20	AM20	18	8258
2750	8700	5400	0.15	650	140	0.273	2	ZM20	AM20	18	8258
3250	5700	2600	0.4	750	200	0.486	2	ZM25	AM25	25	9123
3250	7500	4700	0.2	750	200	0.486	2	ZM25	AM25	25	9123
3750	5000	2200	0.5	850	300	0.73	2.5	ZM30	AM30	32	9947
3750	6700	4300	0.25	850	300	0.73	2.5	ZM30	AM30	32	9947
6400	4500	2100	0.8	950	400	1.91	2.5	ZMA30/52	AM30	65	1950
6400	5600	4000	0.4	950	400	1.91	2.5	ZMA30/52	AM30	65	19509
5200	4400	2000	0.6	900	400	1.51	2.5	ZM35	AM35/58	40	10770
5200	5800	3800	0.3	900	400	1.51	2.5	ZM35	AM35/58	40	10770
6000	4000	1800	0.7	1000	550	2.26	2.5	ZM40	AM40	55	13412
6000	5200	3300	0.35	1000	550	2.26	2.5	ZM40	AM40	55	13412
8800	3500	1600	1.3	1200	750	5.5	2.5	ZMA40/62	AM40	110	25185
8800	4400	3100	0.65	1200	750	5.5	2.5	ZMA40/62	AM40	110	25185
7400	3200	1500	0.9	1250	1000	5.24	2.5	ZM50	AM50	85	16280
7400	4200	3000	0.45	1250	1000	5.24	2.5	ZM50	AM50	85	16280
14800	2900	1200	2.6	1400	1500	15.2	2.5	ZMA50/75	AM50	150	28451
14800	3500	2500	1.3	1400	1500	15.2	2.5	ZMA50/75	AM50	150	28451
12600	4000	3000	1	1300	1650	13.7	3	ZMA60/98	AM60	100	16700
14200	3800	2800	1.2	1450	2250	19.8	3	ZMA70/110	AM70	130	19031
15400	3600	2700	1.4	1600	3000	27.6	3	ZMA80/120	AM80	160	20604
21300	3500	2300	2.3	1700	4400	59.9	3	ZMA90/130	AM90	200	22731
22400	3300	2150	2.6	1900	5800	85.3	3	ZMA100/140	AM100	250	25624
375	16400	6800	0.04	200	8	0.0044	5	ZM06	–	2	2404
830	10900	4600	0.12	325	25	0.029	5	ZM10	–	6	4891
1090	9200	3800	0.16	375	50	0.068	5	ZM12	–	8	5307
1240	8200	3500	0.2	400	65	0.102	5	ZM15	AM15	10	548
1380	7600	3300	0.24	450	80	0.132	5	ZM17	AM17	15	7514
2070	6600	3000	0.3	650	140	0.273	5	ZM20	AM20	18	8258
2450	5700	2600	0.4	750	200	0.486	5	ZM25	AM25	25	9123
2800	5000	2200	0.5	850	300	0.73	5	ZM30	AM30	32	9947
3950	4400	2000	0.6	900	400	1.51	5	ZM35	AM35/38	40	10770
5600	3200	1500	0.9	1250	1000	5.24	5	ZM50	AM50	85	16280
3700	7600	3300	0.36	800	200	0.264	2	ZM17	AM17	15	7514
5500	6600	3000	0.45	1150	320	0.546	2	ZMA20/38	AM20	18	8258
6500	5700	2600	0.6	1300	450	0.972	2	ZMA25/45	AM25	25	9123
7500	5000	2200	0.75	1500	620	1.46	2.5	ZMA30/52	AM30	32	9947
10500	4400	2000	0.9	1600	900	3.02	2.5	ZMA35/58	AM35/58	40	10770
11900	4000	1800	1.05	1750	1200	4.52	2.5	ZMA40/62	AM40	55	13412
14900	3200	1500	1.35	2200	2250	10.48	2.5	ZMA50/75	AM50	85	16280
