Metric type thin section ball bearing

Collect

Details

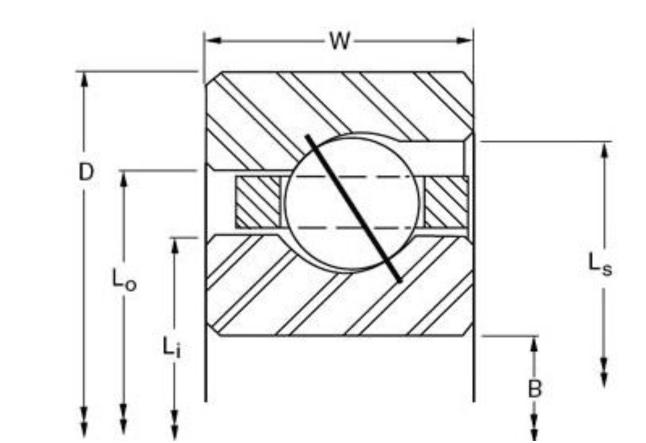

Bearing Number	Dimensions （mm)					Capacities				Weight （kg）
	Size（mm）		Land Diameters（mm）			Radial		Thrust
	Bore	OD	L1	L2	L3	Dynamic	Static	Dynamic	Static
K02508AR0	25	41	30.9	35.1	37.2	372	272	1073	561	0.06
K05008AR0	50	66	55.9	60.1	62.2	656	367	1894	819	0.08
K06008AR0	60	76	65.9	70.1	72.2	787	408	2273	925	0.09
K07008AR0	70	86	75.9	80.1	82.2	896	440	2588	1009	0.1
K08008AR0	80	96	85.9	90.1	92.2	1006	470	2903	1090	0.12
K09008AR0	90	106	95.9	100.1	102.2	1137	505	3282	1182	0.13
K10008AR0	100	116	105.9	110.1	112.2	1246	533	3598	1257	0.14
K11008AR0	110	126	115.9	120.1	122.2	1356	561	3914	1329	0.15
K12008AR0	120	136	125.9	130.1	132.2	1465	587	4229	1400	0.16
K13008AR0	130	146	135.9	140.1	142.2	1596	618	4608	1482	0.17
K14008AR0	140	156	145.9	150.1	152.2	1706	643	4923	1549	0.18
K15008AR0	150	166	155.9	160.1	162.2	1815	667	5239	1615	0.2
K16008AR0	160	176	165.9	170.1	172.2	1946	696	5618	1691	0.2
K17008AR0	170	186	175.9	180.1	182.1	2055	720	5933	1754	0.21
K18008AR0	180	196	185.9	190.1	192.1	2165	742	6249	1816	0.22
K19008AR0	190	206	195.9	200.1	202.1	2296	769	6628	1889	0.23
K20008AR0	200	216	205.9	210.1	212.1	2405	791	6944	1948	0.23
K25008AR0	250	266	255.9	260.1	262.1	2974	897	8585	2244	0.28
K30008AR0	300	316	305.9	310.1	312.1	3564	999	10289	2532	0.33
K32008AR0	320	336	325.9	330.1	332.1	3805	1039	10983	2645	0.36
K34008AR0	340	356	345.9	350.1	352.1	4023	1073	11614	2745	0.38
K36008AR0	360	376	365.9	370.1	372.1	4264	1110	12309	2854	0.4
K02513AR0	25	51	347	41 3	447	616	554	1778	1075	0 13
K05013AR0	50	76	59.7	66.3	69.6	1064	725	3070	1547	0.2
K06013AR0	60	86	69.7	76.3	79.6	1232	782	3555	1706	0.22
K07013AR0	70	96	797	86 3	896	1456	860	4201	1906	0 25
K08013AR0	80	106	89.7	96.3	99.6	1623	913	4686	2050	0.28
K09013AR0	90	116	99.7	106.3	109.6	1791	964	5171	2190	0.31
K10013AR0	100	126	1097	116 3	1196	1959	1013	5656	2324	0 34
K11013AR0	110	136	119.7	126.3	129.6	2127	1061	6141	2455	0.37
K12013AR0	120	146	129.7	136.3	139.6	2295	1108	6625	2583	0.39
K13013AR0	130	156	139.7	146.3	149.6	2519	1171	7272	2748	0.42
K14013AR0	140	166	149.7	156.3	159.5	2687	1215	7757	2869	0.45
K15013AR0	150	176	159.7	166.3	169.5	2855	1258	8241	2987	0.48
K16013AR0	160	186	169.7	176.3	179.5	3023	1301	8726	3104	0.51
K17013AR0	170	196	179.7	186.3	189.5	3191	1342	9211	3217	0.54
K18013AR0	180	206	189.7	196.3	199.5	3359	1382	9696	3329	0.56
K19013AR0	190	216	199.7	206.3	209.5	3527	1422	10181	3439	0.59
K20013AR0	200	226	209.7	216.3	219.4	3750	1476	10827	3583	0.62
K25013AR0	250	276	259.7	266.3	269.4	4590	1659	13251	4100	0.76
K30013AR0	300	326	3097	316 3	3193	5486	1840	15837	4618	0 90
K32013AR0	320	346	329.7	336.3	339.3	5822	1904	16806	4804	0.96
K34013AR0	340	366	349.7	356.3	359.2	6213	1978	17937	5017	1.02
K36013AR0	360	386	369.7	376.3	379.2	6550	2038	18907	5196	1.07
K02520AR0	25	65	40	50	55	1134	1155	3272	2115	0.31
K05020AR0	50	90	65	75	80	1889	1460	5454	2973	0.49
K06020AR0	60	100	75	85	90	2141	1547	6181	3231	0.56
K07020AR0	70	110	85	95	100	2393	1633	6908	3480	0.62
K08020AR0	80	120	95	105	110	2645	1717	7635	3720	0.69
K09020AR0	90	130	105	115	120	3023	1851	8726	4067	0.77
K10020AR0	100	140	115	125	130	3275	1929	9453	4290	0.84
K11020AR0	110	150	125	135	140	3527	2005	10181	4507	0.91
K12020AR0	120	160	135	145	150	3778	2080	10908	4719	0.97
K13020AR0	130	170	145	155	160	4030	2154	11635	4927	1.04
K14020AR0	140	180	155	165	170	4282	2226	12362	5130	1.11
K15020AR0	150	190	165	175	180	4660	2339	13453	5427	1.19
K16020AR0	160	200	175	185	190	4912	2407	14180	5621	1.26
K17020AR0	170	210	185	195	200	5146	2474	14907	5811	1.32
K18020AR0	180	220	195	205	210	5416	2540	15634	5999	1.39
K19020AR0	190	230	205	215	220	5668	2605	16361	6183	1.46
K20020AR0	200	240	215	225	230	6045	2706	17452	6455	1.54
K25020AR0	250	290	265	275	280	7431	3041	21452	7408	1.89
K30020AR0	300	340	315	325	330	8691	3317	25088	8222	2 23
K32020AR0	320	360	315	345	350	9321	3454	26906	8615	2.37
K34020AR0	340	380	355	365	370	9824	3556	28360	8923	2.51
K36020AR0	360	400	375	385	390	10454	3685	30178	9300	2.66
